63823-1
Manufacturer:
TE Connectivity
Mfr.Part #:
63823-1
Datasheet:
Description:

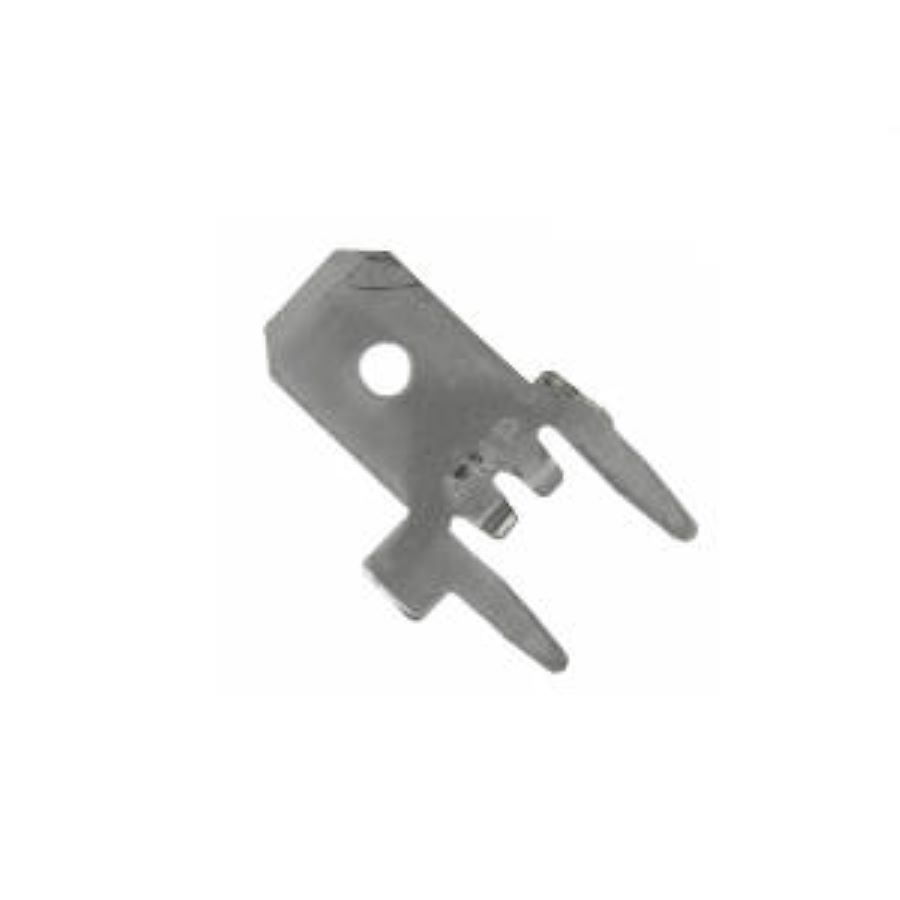

Terminals PCB Male
| Parameter | Value |
|---|---|
| Length | 8.64 mm |
| Termination | Tab |
| Height | 8.63 mm |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.92 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Hole Diameter | 1.3208 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Tin |
| PCB Thickness | 1.5748 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Stud Size | 4.75 mm x 0.51 mm |
